USB2.0

Introduction

The universal serial bus (USB) combines the features included the plug-and-play and strong extendability to computer accessories which provides a standard of data communication to the industry and help reducing the manufacturing cost on a mono-interface. From a keyboard, mouse, or joystick, to a printer, scanner storage drive, modem or digital camera, both input and output devices can be connected with a computer through a USB port.

The 12 Mb/s data rate of USB 1.0/1.1 was intended for higher-speed devices, and the lower 1.5 Mb/s rate for low data rate devices such as input devices. The advance USB version 2.0 can support the data rate up to 480 Mb/s and it is frequently applied on the digital camera, high-resolution scanner and portable storage device. USB 2.0 plug is also compatible with the port and driver of USB 1.0/1.1.

Application Specification Feature
  • Computer accessories
  • Consumer electronic
  • products
  • Portable device (MP3, tablet)
  • Digital camera
  • Modem, scanner
  • Storage device
  • Compatibility of USB 2.0 in drivers and interface with USB 1.0/1.1
  • Plug options

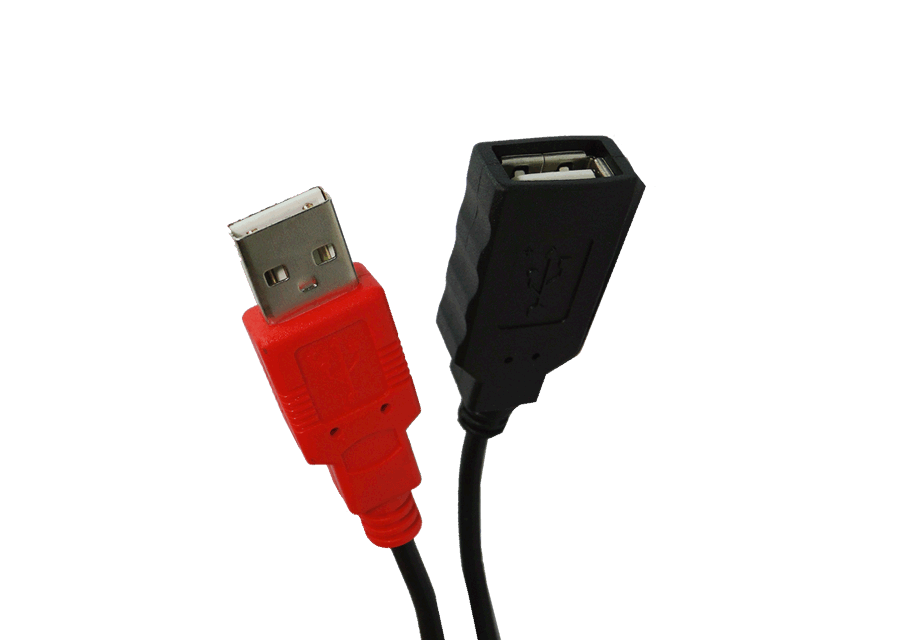

    · A / Male to A / Female
    · A to Mini-B
    · Mini-A to Mini-B
    · A to B
    · B to Mini-A
    · A to Micro-A
  • Full compliance with USB 2.0 specification
  • 12 Mb/s – 480 Mb/s communication rate
  • Supports up to 127 devices at once
  • Supports multi device interconnection
  • Plug-and-play function
  • Up to 5 meters per cable segment
