InfiniBand

Introduction

InfiniBand unlimited broadband is a new technical standard, because of high reliability, faster transmission speed, applied in a management server central processing unit ( CPU ) and network cards and storage system communication. Because InfiniBand has the synchronous machine functions, can be considered as a new bus architecture, the development of the main purpose is to replace an existing server in the PCI bus, solve the existing server I / O architecture transmission bottleneck, to maximize the processor performance. Therefore, it can support data bandwidth, can from 500.MB / s change to 6GB / s, line speed for 2.5Gbps.

Application Specification
  • Blade Server
  • Rack Mounted Server
  • Cluster equipment
  • Mainframe
  • Storage Server
  • Backbone Switch/Router
  • Dedicated Server
  • Dedicated Server

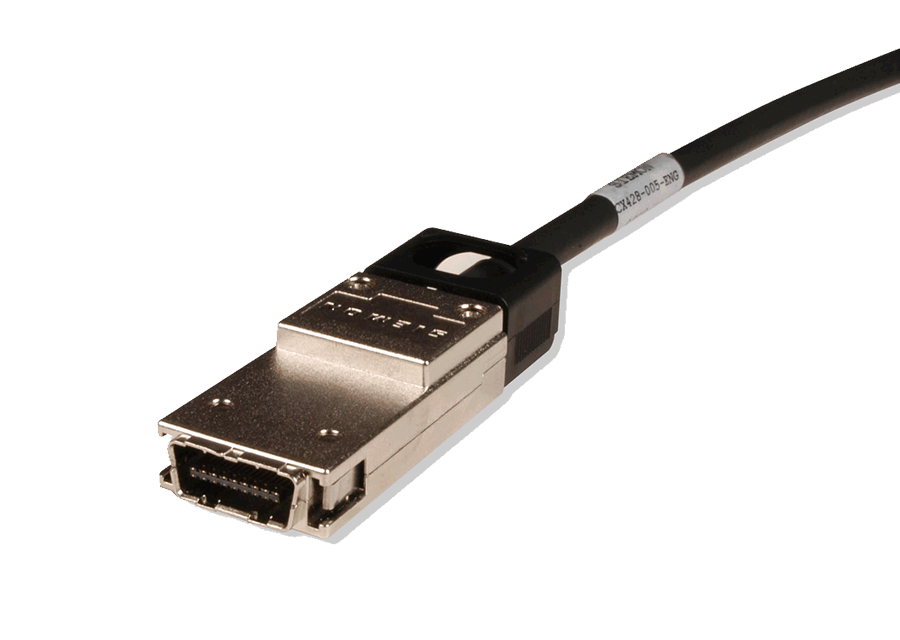

  • SFF 8088、SFF 8470
  • Compliance with IBTA 1.1 standard
  • Cable length can be supported up to 15 meters
  • The interface supports the following cable standards:
    ·InfiniBand
    ·10 Gb Fiber Channel
    ·10 Gb Ethernet
  • The serial connection’s signaling rate is 2.5 Gb/s in each direction
  • Option of configurations in data rate: 1x, 4x , 12x
